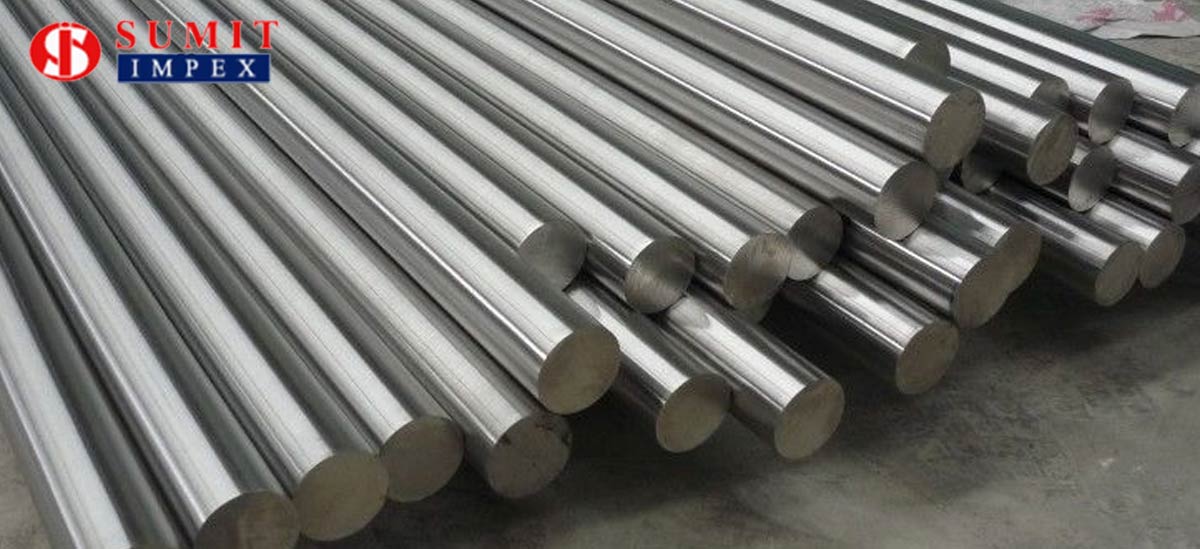

Stainless Steel 317/317L Round Bar

What is Stainless Steel 317/317L Round Bar

SS 317 is a higher strength steel grade which is constructed to represent a higher strength equivalent to the 316 grades. Otherwise, SS 317 Round Bars have chemical composition of chromium, molybdenum, and nickel as the primary composition that makes the material more resistant to corrosive media better than regular grades like 316. Due to the high percentage of ferrous into SS 317 grade bars, it is more durable than any other kind of grades more specifically like grade 304. SS 317 and 317L are almost equivalent grades with the only difference of carbon composition.

SS 317 round bars come into existence with low carbon version steel grade, better known for offering excellent resistance to corrosion and high strength properties. The industries that employ SS 317 and 317L are most often as textile industries, chemical industries, paper and pulp industries, etc.

UNS S31703 H Bars Stockist, DIN 1.4449 MIG Wire, SS 317 Threaded Bars, 317L SS Rectangular Bar Exporter, ASME SA276 SS 317 Tig Wire, 317L SS Rectangular Bar, 317 SS Flat Bars Exporter, ASTM A276 SS 317L Polished Bar Supplier, 317 SS PSQ Bar, UNS S31700 Hollow Bar, DIN 1.4449 Shaft, SS 317L Ingot Bars Manufacturer.

Sumit Impex has been manufacturing and supplying high quality stainless steel 317/317L Round Bars. We provide all kinds of customized round bars according to different shapes, sizes, and dimensions of the customers. The SS forms of SS 317/317L which are offered by us are Round, square, rectangular, hydraulic, etc.

In terms of weldability, SS 317 performs very well. The hot working and cold working practices are performed by SS 317 and 317L. Although, SS 317 can be work hardened through cold workings that also helps out to increase the strength of the material and hence shows good versatility. During heat treating, temperature should be maintained up to 1700 Degree F. Dropping the temperature from the following range may cause some complications within the material grade.

Specification:- Stainless Steel 317/317L Round Bar

Specification	A276 / A479, SA276 / A479
Dimension Standard	EN, DIN, JIS, ASTM, BS, ASME, AISI
Range	3.17 MM TO 350 MM DIA
Size	Round Bar Size: 3mm~ 800mm Square Bar Size: 4mm* 4mm ~100mm* 100mm Flat Bar Size: 2mm ~ 100mm Hex Bar Size: 2mm ~ 100mm
Thickness	50 mm to 6000 mm Long
Length	1 To 6 Meters, Custom Cut Length
Finish	Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Equivalent Grade:- Stainless Steel 317/317L Round Bar

STANDARD	UNS	WNR.	JIS	EN
SS 317	S31700	1.4449	SUS 317	-
SS 317L	S31703	1.4438	SUS 317L	X2CrNiMo18-15-4

Chemical Composition:- Stainless Steel 317/317L Round Bar

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
317	0.08 max	2 max	1 max	0.040 max	0.03 max	18 – 20	3 – 4	11 – 14	-
317L	0.035 max	2 max	1 max	0.040 max	0.03 max	18 – 20	3 – 4	11 – 15	-

Mechanical Properties:- Stainless Steel 317/317L Round Bar

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1454 °C (2650 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

Dimensions:- Stainless Steel 317/317L Round Bar

Diameter or Width (mm)	Weight per meter		Sectional Area		Perimeter
	Square (kg)	Round (kg)	Square (cm²)	Round (cm²)	Square (cm)	Round (cm)
5.0	0.20	0.15	0.25	0.20	2.0	1.57
5.5	0.24	0.19	0.30	0.24	2.2	1.78
6.0	0.28	0.22	0.36	0.28	2.4	1.88
7.0	0.38	0.30	0.49	0.38	2.8	2.20
8.0	0.50	0.39	0.64	0.50	3.2	2.51
9.0	0.64	0.50	0.81	0.64	3.6	2.83
10	0.73	0.63	1.00	0.79	4.0	3.14
11	0.95	0.75	1.21	0.95	4.4	3.46
12	1.13	0.89	1.44	1.13	4.8	3.77
14	1.54	1.21	1.96	1.54	5.6	4.40
16	2.01	1.58	2.56	2.01	6.4	5.03
18	2.54	2.00	3.24	2.54	7.2	5.65
20	3.14	2.47	4.00	3.14	8.0	6.28
22	3.80	2.98	4.84	3.80	8.8	6.91
25	4.91	3.85	6.25	4.91	10.0	7.85
28	6.15	4.83	7.84	6.16	11.2	8.80
32	8.04	6.31	10.24	8.04	12.8	10.05
36	10.17	7.99	12.96	10.18	14.4	11.31
40	12.56	9.86	16.00	12.57	16.0	12.57
45	15.90	12.49	20.25	15.90	18.0	14.14
50	19.62	15.41	25.00	19.64	20.0	15.71
56	24.62	19.34	31.36	24.63	22.4	17.59
63	31.16	24.47	36.69	31.17	25.2	19.79
71	39.57	31.08	50.41	39.59	28.4	22.31
80	50.24	39.46	64.00	50.27	32.0	25.13

Weight Chart:- Stainless Steel 317/317L Round Bar

Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3"	10.900	35.762
1/8"	0.019	0.062	22mm	0.908	2.979	3-1/4"	12.800	41.996
5/32"	0.029	0.095	7/8"	0.926	3.038	3-1/2"	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4"	17.001	55.780
3/16"	0.043	0.141	25mm	1.180	3.871	4"	19.306	63.340
5mm	0.047	0.154	1"	1.210	3.970	4-1/4"	21.908	72.249
7/32"	0.058	0.190	26mm	1.271	4.170	4-1/2"	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4"	27.366	90.249
1/4"	0.076	0.249	1-1/8"	1.534	5.033	5"	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2"	36.690	121.000
5/16"	0.118	0.387	1-1/4"	1.924	6.349	6"	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2"	51.093	167.630
9mm	0.152	0.498	1-3/8"	2.303	7.550	7"	59.432	196.000
3/8"	0.170	0.557	35mm	2.390	7.553	7-1/2"	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8"	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10"	121.048	397.140
7/16"	0.232	0.761	1-1/2"	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2"	0.303	0.994	1-5/8"	3.200	10.449
13mm	0.318	1.043	1-3/4"	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16"	0.383	1.256	1-7/8"	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8"	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2"	4.848	15.906
17mm	0.543	1.791	2-1/8"	5.475	17.963
11/16"	0.573	1.880	2-1/4"	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4"	0.682	2.237	2-3/8"	6.838	22.435
			2-1/2"	7.576	24.856
			2-5/8"	8.354	27.409
			2-3/4"	9.169	30.083

Different Types:- Stainless Steel 317/317L Round Bar

Price List:- Stainless Steel 317/317L Round Bar

Stainless Steel 317 Hex Bar
USD $2.1 – $10.03 / Kg
SS 317L Round Bar
USD $2.05 – $10.18 / Kg
Alloy 317 Bright Bar
USD $2.45 – $10.48 / Kg
SS 317 Threaded Bar
USD $2.18 – $10.81 / Kg
UNS S31700 Flat Bar
USD $2.14 – $10.45 / Kg
ASTM A276 SS 317L Square Bar
USD $2.11 – $5.2 / Kg
DIN 1.4449 Black Bar
USD $2.13 – $10.92 / Kg

Application Industries

These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

Construction
Bridges
Petrochemical Industry
Ship Building
Engineering
General Structural Purposes
Offshore and Onshore Services

Packaging Industries

We Sumit Impex Metal Ensure the Best Quality of Packing, Because It Plays an Important Role Especially in the Case of International Shipments in Which Consignment Passes Through Various Channels to Reach the Ultimate Destination, So We Put Extraordinary Concern Regarding Packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,

Testings (Destructive, Non Destructive)

Mechanical Testing Such as Tensile, Elongation, Reduction of Area
Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
Positive Material Identification – PMI Testing
Chemical Analysis – Spectro Analysis
Intergranular Corrosion (IGC) Test
Pitting Resistance Test
Dye Penetrant Test (DP Test)
Bend Test

Micro Test
Macro Test
Hardness Test
Flaring Test
Flattening Test
Hydrostatic Test
Radiography Test
Ultra Sonic Test (UT)
Eddy Current Testing
Impact Test
